摩尔斯编码Trie树

一个前缀树（也称为“trie树”），表示字母的摩尔斯编码。可以通过追踪从树中相应节点到根节点的路径，并反转路径上遇到的符号顺序来编码一个字母。

•• •—•• ——— •••— • —• • — •—— ——— •—• —•— —••—

import networkx as nx

# Unicode characters to represent the dots/dashes (or dits/dahs) of Morse code
dot = "•"
dash = "—"

# Start with the direct mapping of letter -> code
morse_direct_mapping = {
    "a": dot + dash,
    "b": dash + dot * 3,
    "c": dash + dot + dash + dot,
    "d": dash + dot * 2,
    "e": dot,
    "f": dot * 2 + dash + dot,
    "g": dash * 2 + dot,
    "h": dot * 4,
    "i": dot * 2,
    "j": dot + dash * 3,
    "k": dash + dot + dash,
    "l": dot + dash + dot * 2,
    "m": dash * 2,
    "n": dash + dot,
    "o": dash * 3,
    "p": dot + dash * 2 + dot,
    "q": dash * 2 + dot + dash,
    "r": dot + dash + dot,
    "s": dot * 3,
    "t": dash,
    "u": dot * 2 + dash,
    "v": dot * 3 + dash,
    "w": dot + dash * 2,
    "x": dash + dot * 2 + dash,
    "y": dash + dot + dash * 2,
    "z": dash * 2 + dot * 2,
}

### Manually construct the prefix tree from this mapping

# Some preprocessing: sort the original mapping by code length and character
# value
morse_mapping_sorted = dict(
    sorted(morse_direct_mapping.items(), key=lambda item: (len(item[1]), item[1]))
)

# More preprocessing: create the reverse mapping to simplify lookup
reverse_mapping = {v: k for k, v in morse_direct_mapping.items()}
reverse_mapping[""] = ""  # Represent the "root" node with an empty string

# Construct the prefix tree from the sorted mapping
G = nx.DiGraph()
for node, char in morse_mapping_sorted.items():
    pred = char[:-1]
    # Store the dot/dash relating the two letters as an edge attribute "char"
    G.add_edge(reverse_mapping[pred], node, char=char[-1])

# For visualization purposes, layout the nodes in topological order
for i, layer in enumerate(nx.topological_generations(G)):
    for n in layer:
        G.nodes[n]["layer"] = i
pos = nx.multipartite_layout(G, subset_key="layer", align="horizontal")
# Flip the layout so the root node is on top
for k in pos:
    pos[k][-1] *= -1

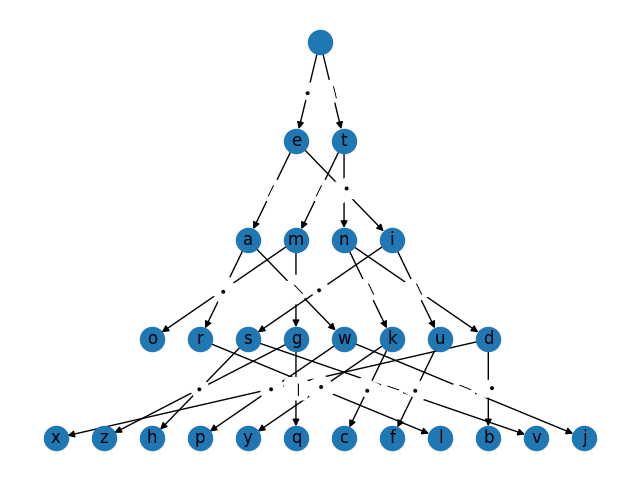

# Visualize the trie
nx.draw(G, pos=pos, with_labels=True)
elabels = {(u, v): l for u, v, l in G.edges(data="char")}
nx.draw_networkx_edge_labels(G, pos, edge_labels=elabels)


# A letter can be encoded by following the path from the given letter (node) to
# the root node
def morse_encode(letter):
    pred = next(G.predecessors(letter))  # Each letter has only 1 predecessor
    symbol = G[pred][letter]["char"]
    if pred != "":
        return morse_encode(pred) + symbol  # Traversing the trie in reverse
    return symbol


# Verify that the trie encoding is correct
import string

for letter in string.ascii_lowercase:
    assert morse_encode(letter) == morse_direct_mapping[letter]

print(" ".join([morse_encode(ltr) for ltr in "ilovenetworkx"]))
